SIHGA Modulix

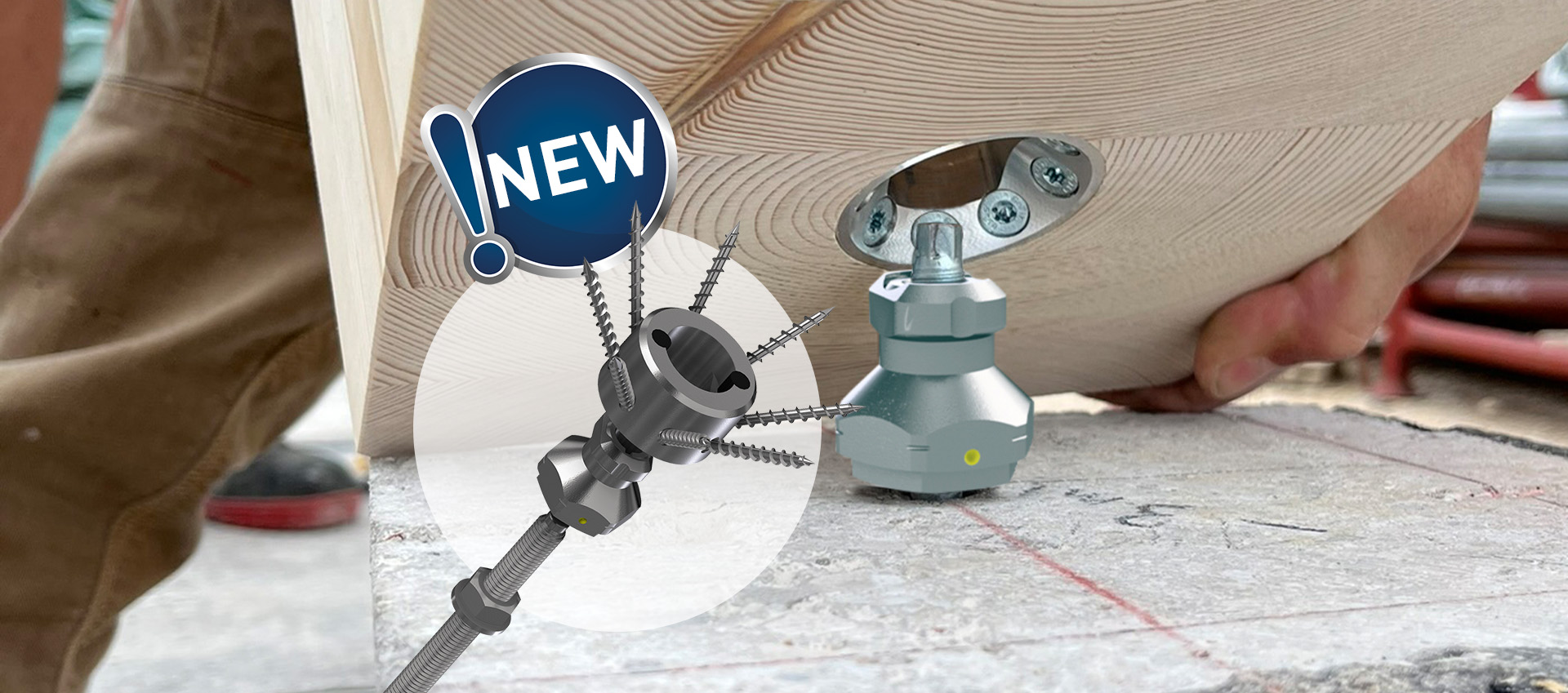

Reversible connection between wooden wall and concrete
Modulix® is the innovative connection solution for the force-fit connection of timber frame or cross-laminated timber walls to concrete foundations or concrete bases. Developed for static requirements, maximum ease of installation and consistently recyclable construction.
Areas of application
- Timber frame construction
- Cross-laminated timber (CLT)
- Modular construction
- Temporary or reversible structures
- Circular building concepts ("cradle to cradle")
The advantages of Modulix®
- Centric load transfer for maximum safety
- Ideal for narrow concrete bases
- 90° locking – quick & play-free
- Height adjustable 12–30 mm
- Readjustable when installed and locked
- 45° screw connection for maximum forces
- No visible angles
- Detachable & reusable
- Can be pre-assembled for quick installation
Suitable accessories for precise and efficient installation:
Wood fastening: GoFix® HK 6 × 60 mm (included)
Concrete fastening: Fischer FAZ II Plus M12 (optional)

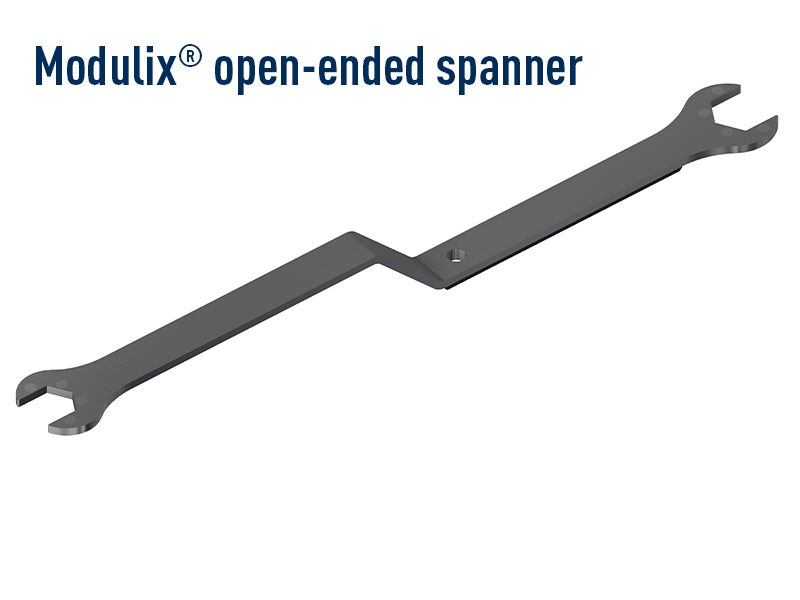

- Modulix® open-end spanner 30/36 – for adjusting, locking and unlocking

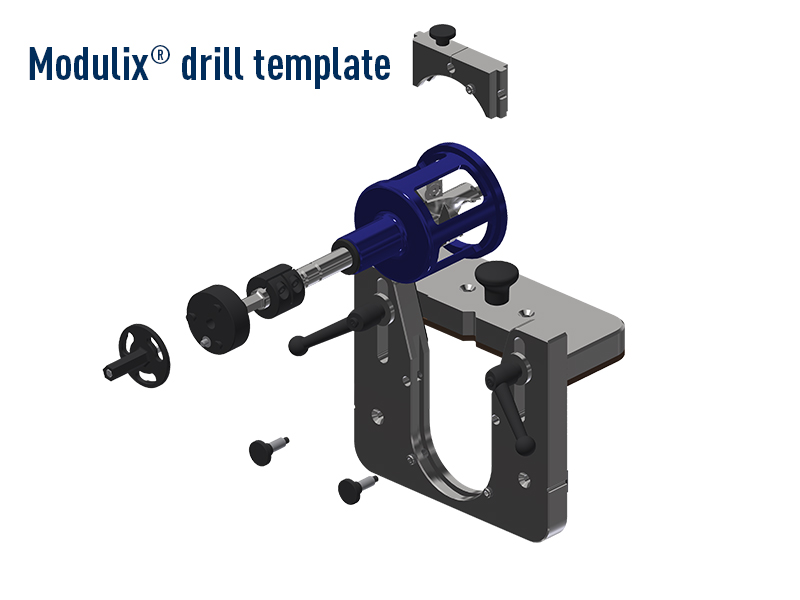

- Modulix ® drilling template (also available for hire) – for precise drilling in wood
- Orakelix® – millimetre-precise height adjustment using laser
- Orakelix® Adapter Modulix® – perfectly matched to the Modulix® system
