Put an end to platelet madness
A new approach to installation

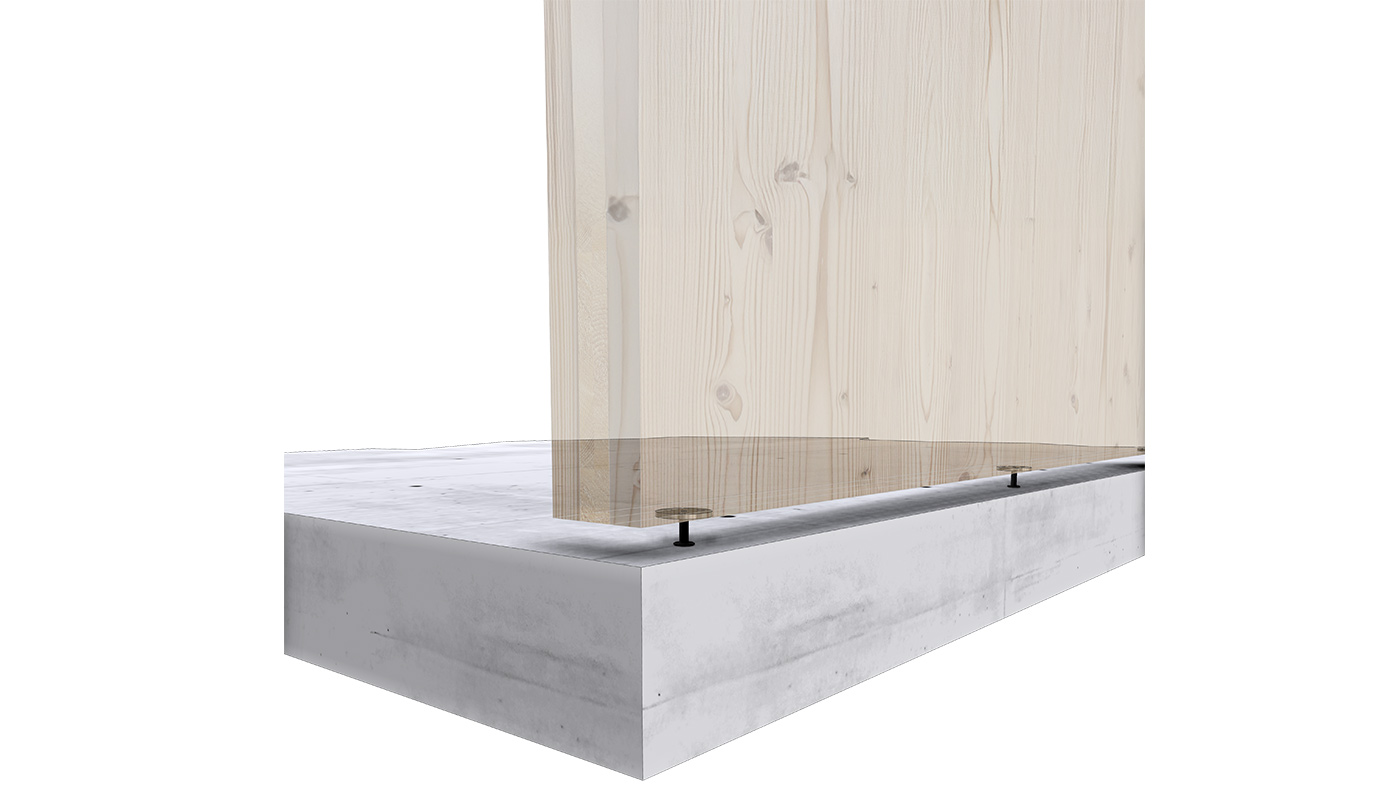

With the SIHGA® Distancer, the first component installation on the concrete floor slab is child's play. Developed for maximum efficiency and precision when positioning the first component on concrete slabs, it replaces the time-consuming placement of shims with an infinitely adjustable solution - simply drill, hammer in and screw in.
Stability guaranteed

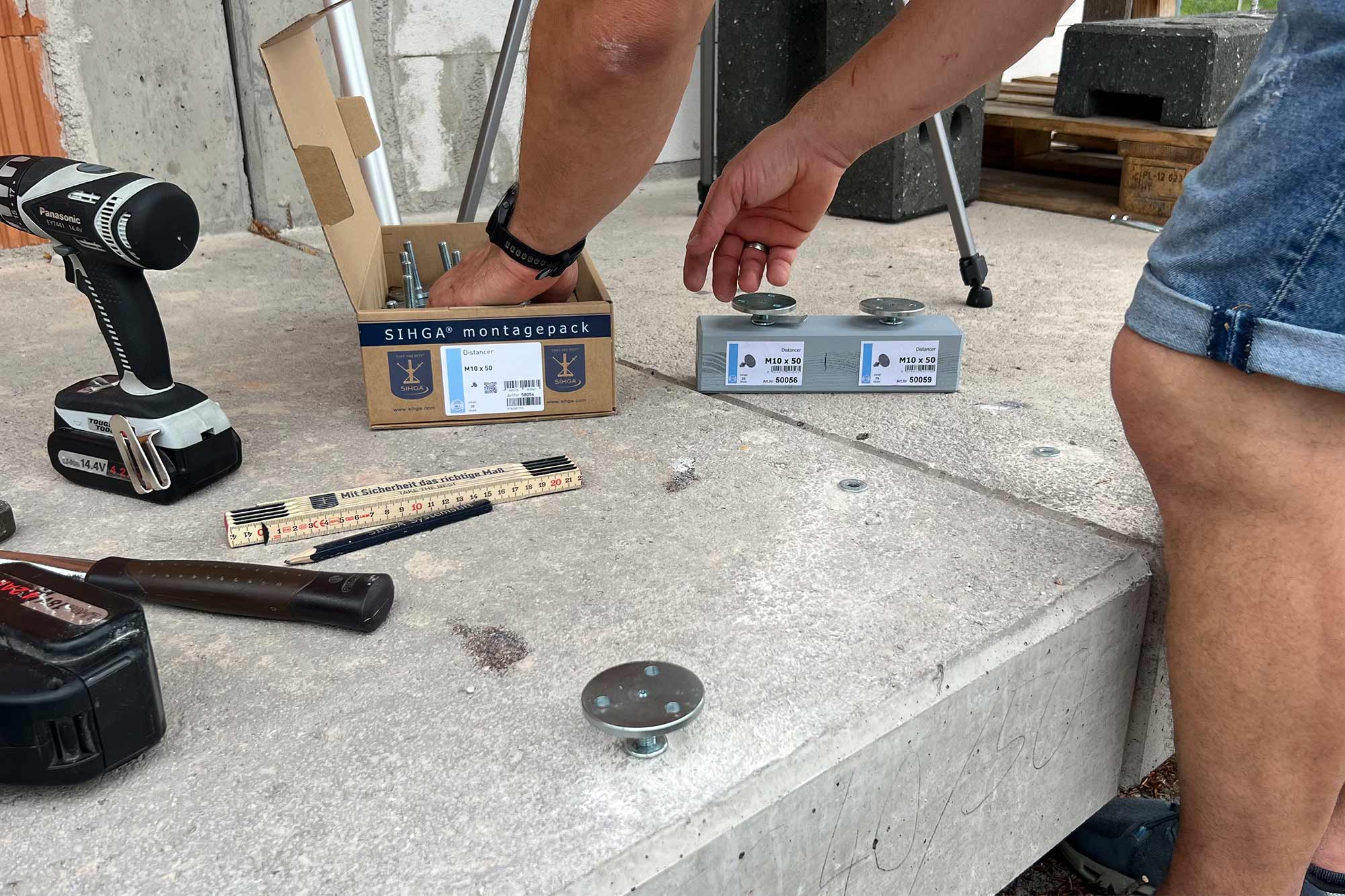

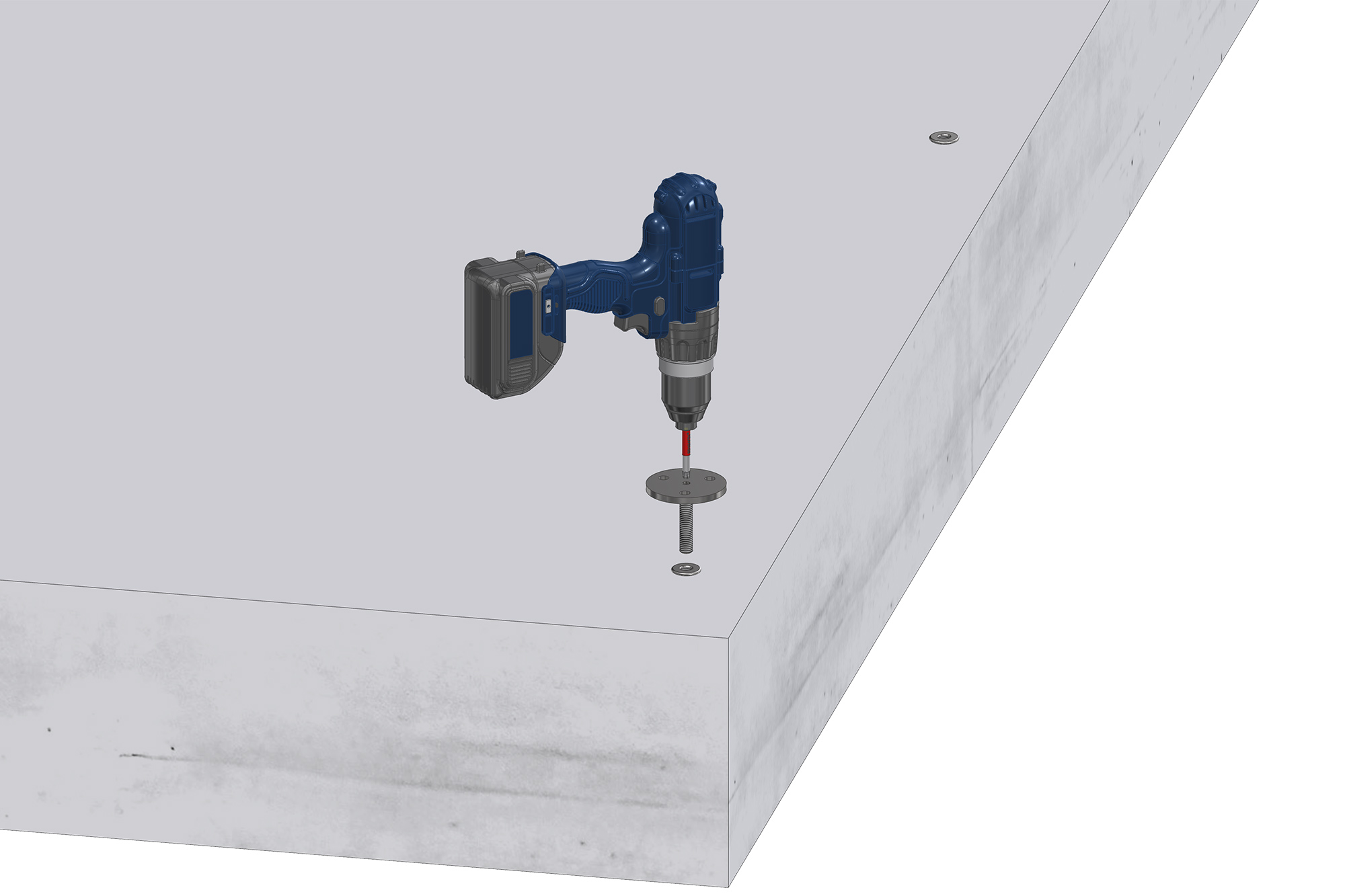

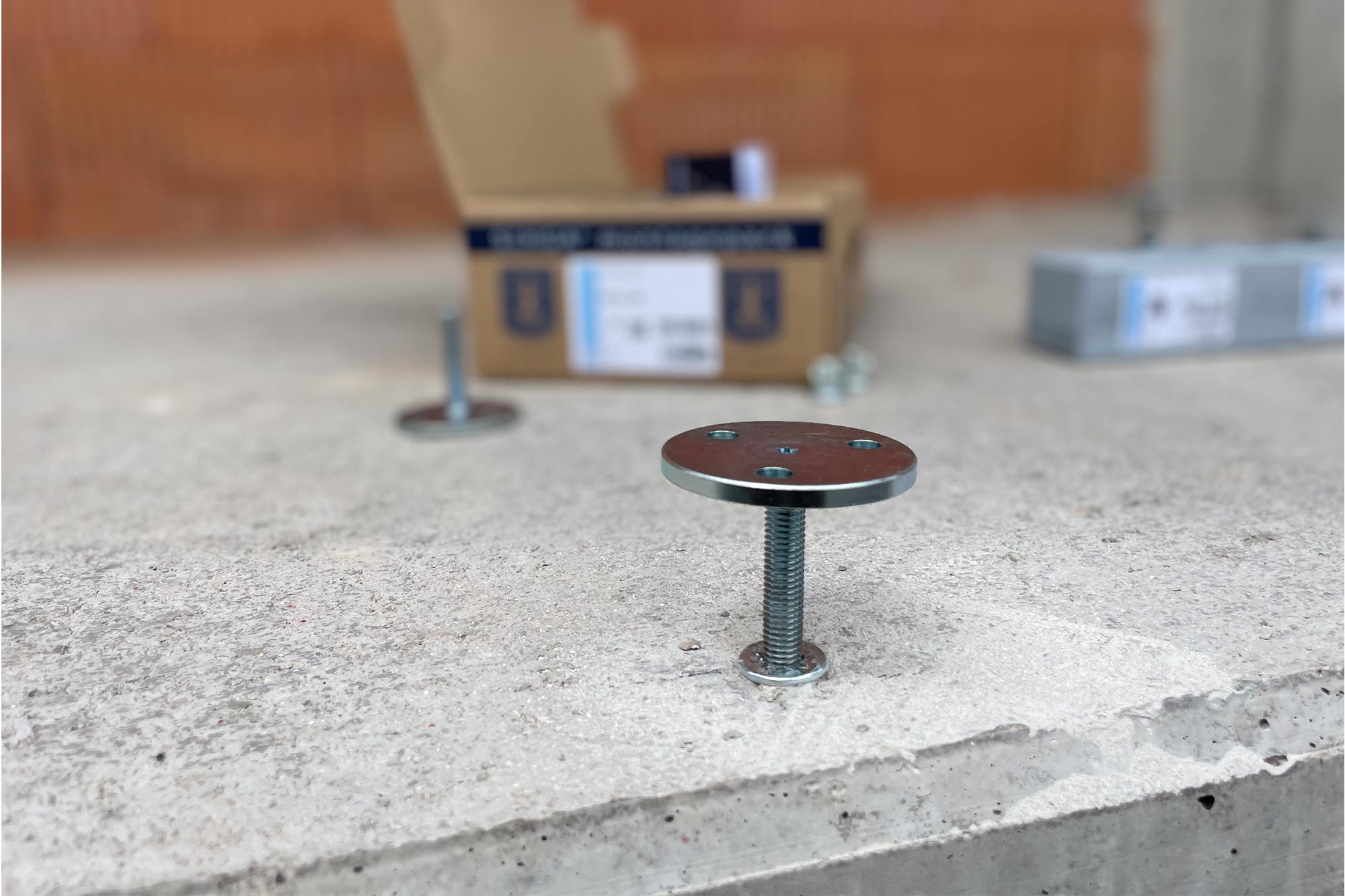

The threaded sleeve is hammered into a Ø 12 mm hole (50 mm deep) and then adjusted to the desired level (8-40 mm) with millimetre precision using the TX 30 drive in the plate via the integrated M10 thread using a cordless screwdriver.
Compatible & ergonomic
The distancer can be used even more efficiently in combination with the SIHGA® Orakelix and a laser level. The integrated plate perforation allows the systems to be connected and enables ergonomic, precise working while standing - for maximum precision and comfort on the construction site.

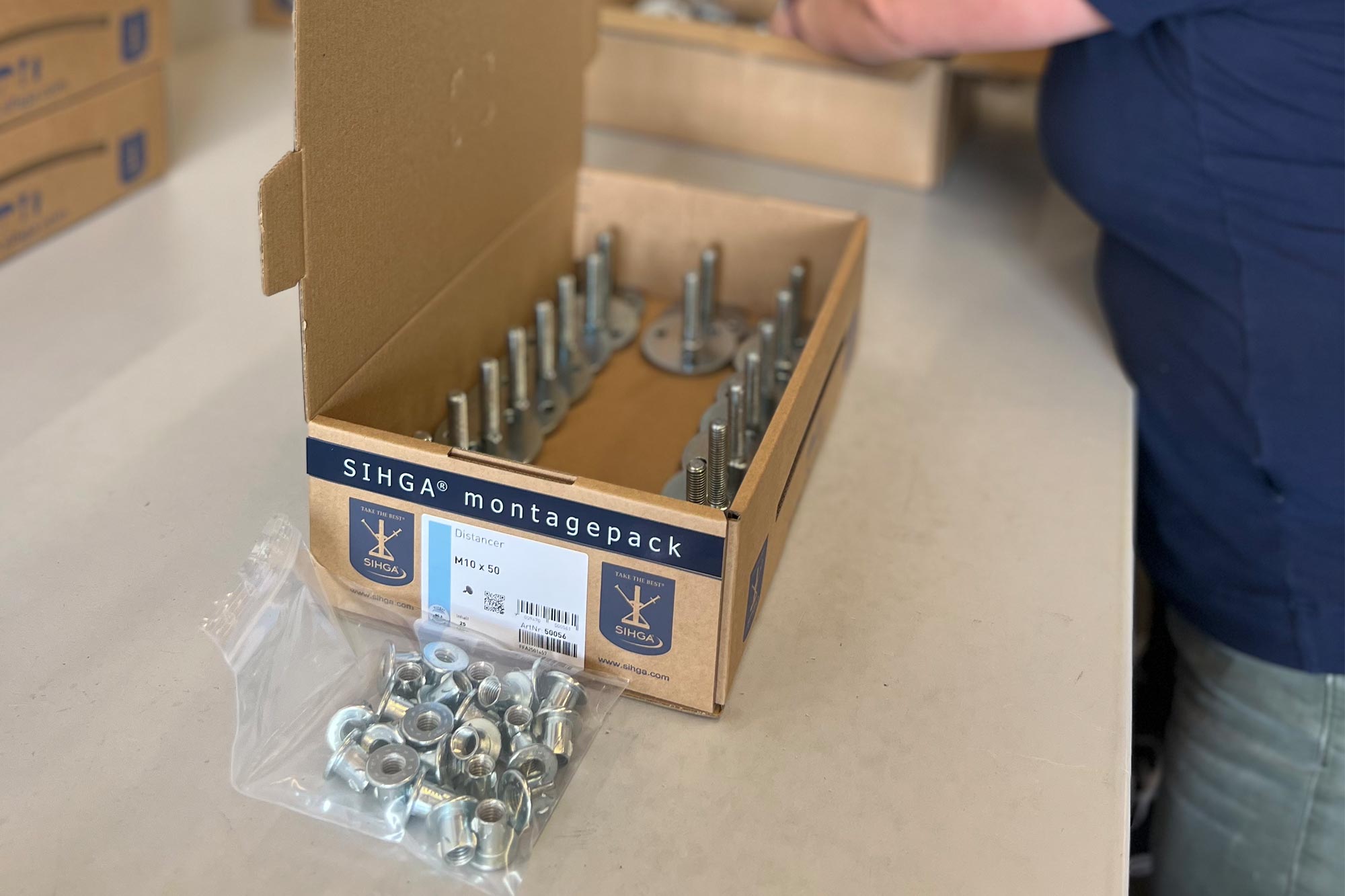

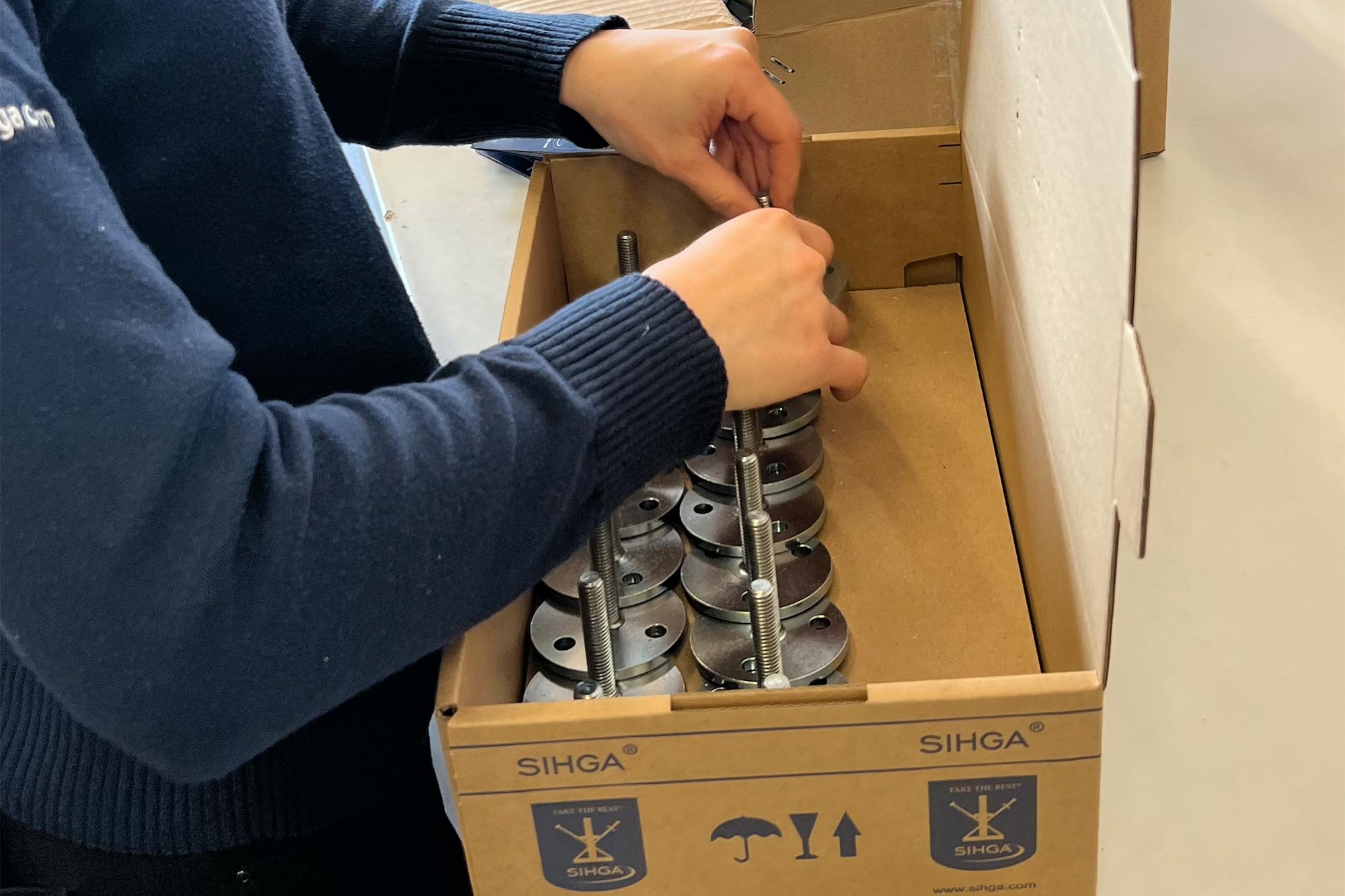

Manufactured in Austria
The advantages of Distancer
Lightning-fast installation on concrete substrates - completely without plates
Stepless height adjustment from 8 to 40 mm for maximum precision
Compatible with Orakelix and laser levelling device for ergonomic working in a standing position and precise levelling
No more adjustment work - the component stays exactly where it should be
Precise and smooth-running - metric thread for fine adjustment
Ready and fixed - optionally with DistaStop for locking
