Concealed distance mounting

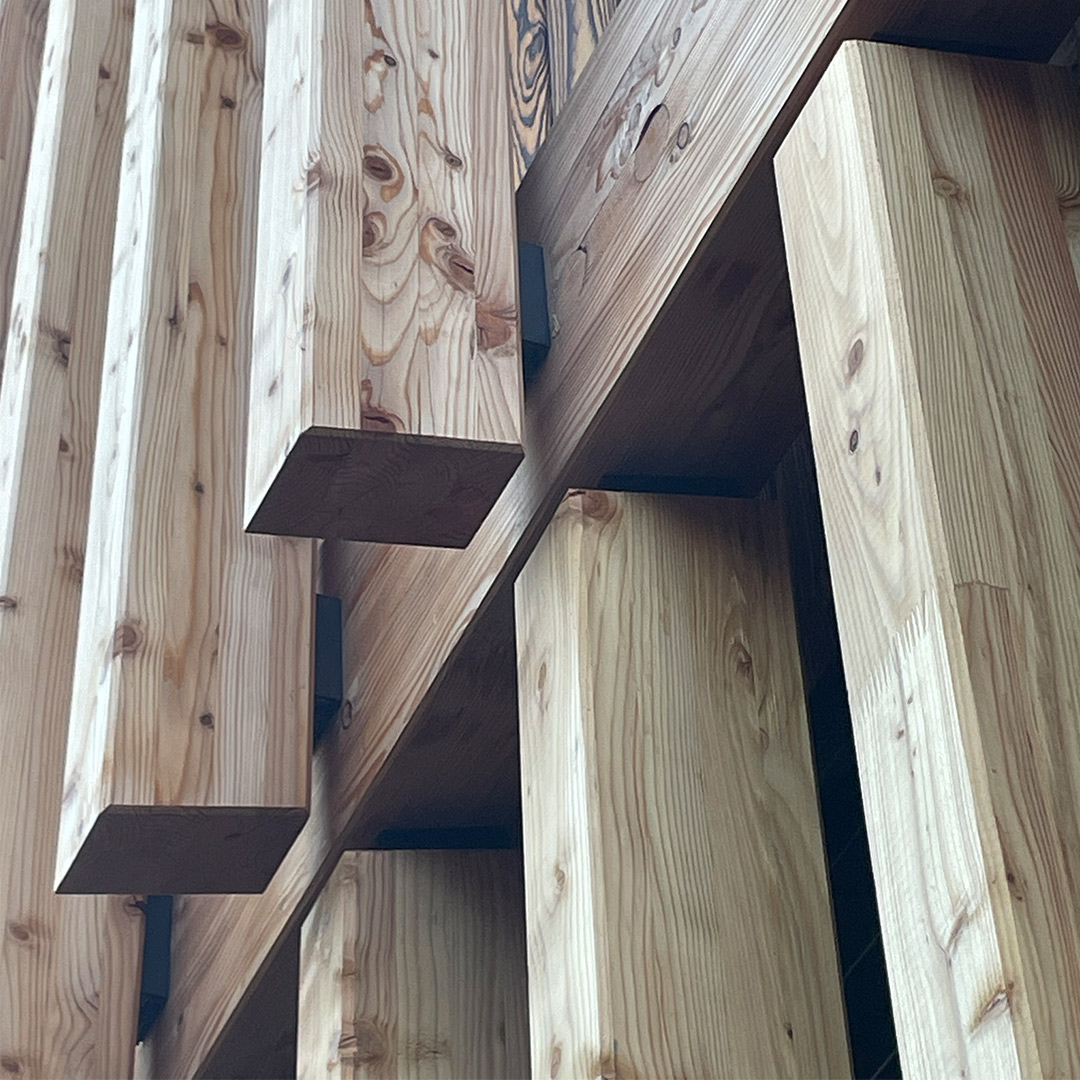

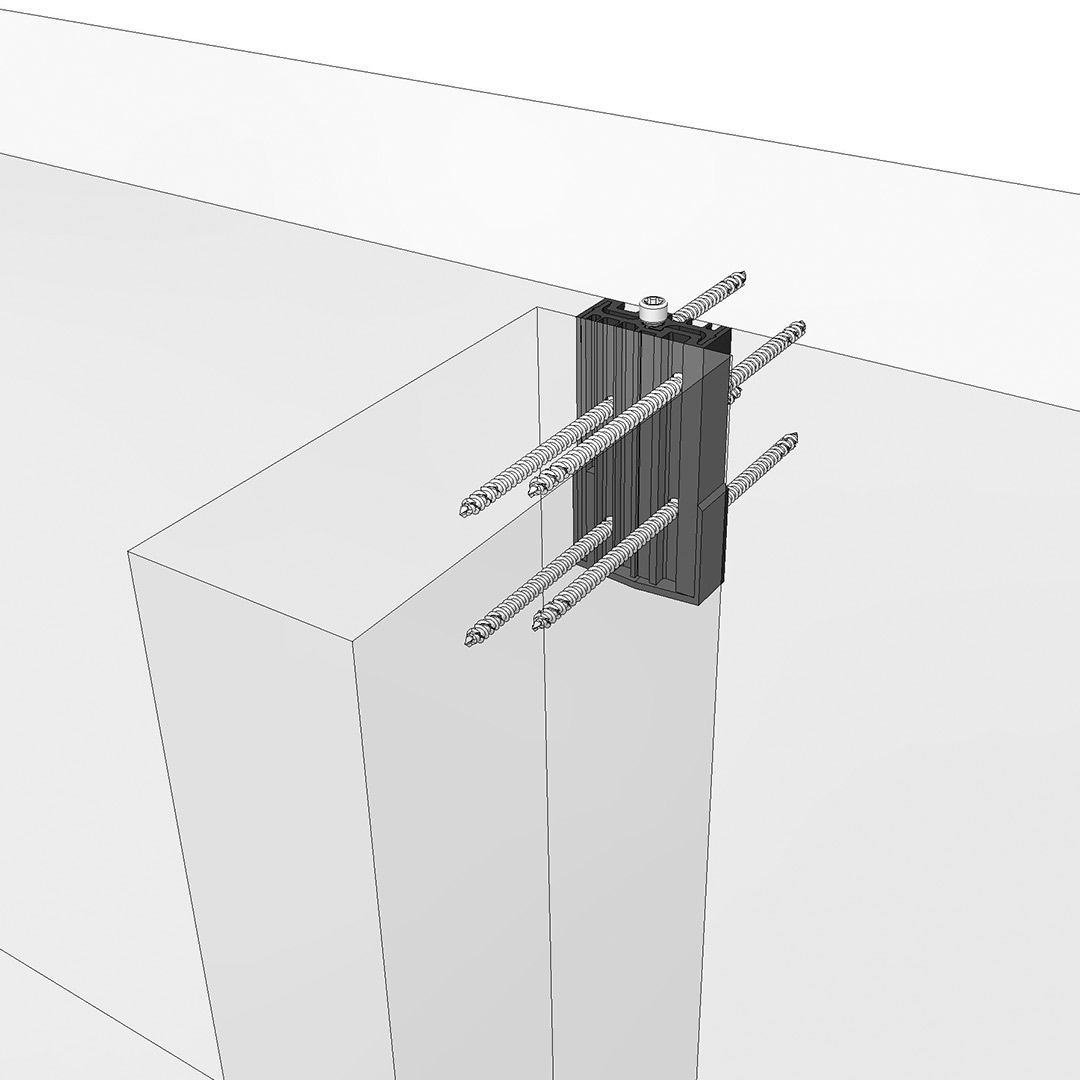

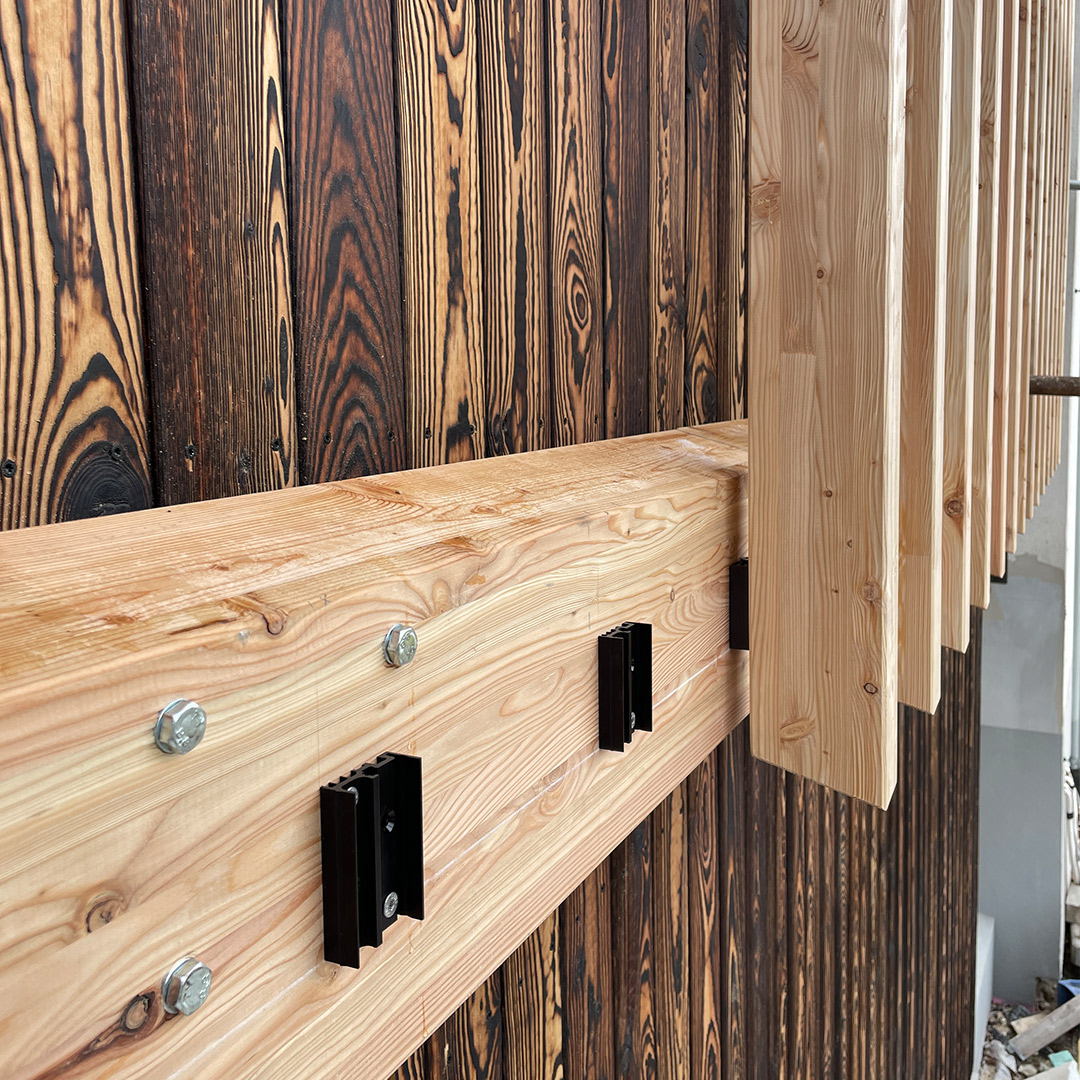

LamellenFix fastens wooden slats to various substrates. The connector consists of two identical aluminium parts and is black anodised. One part is mounted on the wall. The other part is attached to the back of the wooden slat during the timber construction process. On site, the wooden slat is clipped onto the part mounted on site from the front. A locking screw connects the two connector parts securely. The LamellenFix is concealed behind the slat. The slat is spaced 20 mm from the substrate. Water can drain away quickly and the LamellenFix thus ensures perfect structural wood protection.
Thanks to the load transfer via a fully threaded locking screw, the LamellenFix can be arranged several times on top of each other. Each connector is loaded evenly. All components of the LamellenFix are rustproof and suitable for use class 3 (exposed to the elements).
FACTS:
- Concealed fastening behind the slat
- Minimal contact surface with the wood
- Quick installation and removal
- System with ETA-23/0821 approval li>
- High load capacity (up to 12.9 kN vertical – rated value!)
- Cost-effective solution
- Made in Austria
NEW:
In response to popular demand, we launched LamellenFix small in 2026. It is only 36 mm wide, making it suitable for wooden slats with a width of 40 mm or more. The load is absorbed by the wooden slat via two self-drilling TeFix 6.0*70 mm stainless steel screws. Each LamellenFix small can absorb a compressive force F1 of 2.36 kN (design value!).
